Selecting a qualified global supplier for raw heavy elements requires deep alignment with precise analytical verification parameters. As a recognized Electrolytic Manganese Metal Flakes Supplier 99.7% for Steelmaking and Alloy Industry, ZhenAn specializes in executing high-compliance metallurgical distributions. Our technical manufacturing framework guarantees a reliable High Purity Bulk Supply engineered to withstand the demanding tolerances of vacuum melting and critical alloy production lines.
Core Structural Dimensions of Premium Flake Electrolytic Manganese

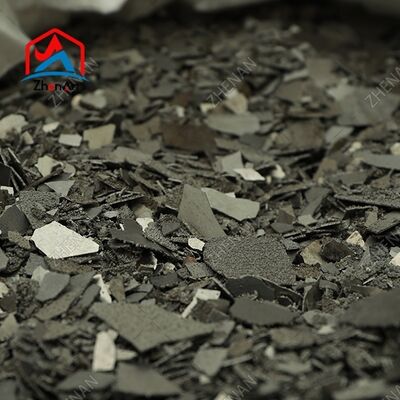

A certified Electrolytic Manganese Metal Flakes Supplier 99.7% for Steelmaking and Alloy Industry defines EMM as a refined, singular elemental configuration isolated via specialized hydrometallurgical processing. This Flake Electrolytic Manganese material possesses an irregular, highly dense crystalline sheet format. Its distinctive topography features a bright, silver-gray reflective sheen on the smooth cathode face, balanced by a matte, slightly oxidized rough charcoal finish on the reverse surface.
By bypassing traditional smelting methods, this advanced electrodeposition process achieves a baseline Mn 99.7% Minimum concentration. Industrial procurement teams specify these High Purity Manganese Flakes because they introduce virtually zero structural ballast or unpredictable tramp metals, providing full chemical control over clean steelmaking and foundry recipes.
Hydrometallurgical Electrodeposition Process
Transforming complex carbonate and oxide ores into predictable Metallurgical Grade Manganese Flakes involves a strict, closed-loop chemical engineering matrix:
- Leaching Matrix Extraction: Ground manganese minerals undergo automated digestion inside sulfuric acid (H₂SO₄) tanks, producing a dense manganese sulfate solution.
- Chemical Precipitation & Purification: The raw solution is treated with ammonium sulfide ((NH₄)₂S) and neutralizing buffers to precipitate iron, copper, cobalt, nickel, and zinc complexes away from the liquid stream.
- Amperage Electrodeposition: The ultra-pure fluid is directed into diaphragmed cell matrices. High-density direct current forces pure Mn²⁺ ions to migrate, forming uniform metallic crystalline sheets on premium cathode plates.
- Stripping & Sizing: The deposited layers are mechanically peeled, washed with nitric acid solutions to prevent flash rust, dried, and sized to match global bulk sorting profiles.
Analytical Benchmarks for Certified EMM Chemical Specification
To ensure absolute chemical safety inside high-induction furnaces, each bulk allocation must adhere to a rigid EMM chemical specification:
| Elemental Parameter |
Electrolytic Manganese 99.7 Purity |
High Grade Manganese Flakes (99.8%) |
| Manganese (Mn) Mass ≥ |
99.70% |
99.80% |
| Carbon (C) Load ≤ |
0.04% |
0.01% |
| Sulfur (S) Level ≤ |
0.03% |
0.02% |
| Phosphorus (P) Limit ≤ |
0.005% |
0.004% |
| Iron (Fe) Fraction ≤ |
0.02% |
0.01% |
| Silicon (Si) Residue ≤ |
0.01% |
0.005% |
Mechanical Variables for Manganese Flakes Size Specification
Managing the physical Manganese Flakes Size Specification balances handling safety against optimal melting performance inside alloy vessels:
- Thickness and Distribution: Regular flakes measure between 1.2mm and 3.0mm thick. This thickness prevents the metal from breaking down into fine dust during mechanical feeding, which minimizes respiratory hazards and material waste.
- Lateral Sizing Controls: Pieces typically average 10mm to 50mm wide, providing a high surface area that allows the material to dissolve quickly in the ladle melt.
- Passivation Coating: Advanced chemical rinsing forms a microscopic protective barrier that prevents air oxidation, ensuring the flakes remain dry and free-flowing throughout transport.
Battery Energy Storage Applications
While primary consumption is centered on iron processing, manganese metal form distributions serve as crucial mineral components in high-growth green energy technologies:
- Next-Generation Batteries: High-purity EMM is dissolved in high-purity sulfuric acid to produce battery-grade Manganese Sulfate (MnSO₄). This acts as a foundation for high-energy NMC and lithium manganese iron phosphate (LMFP) electric vehicle batteries.
- Electronic Soft Ferrites: EMM provides a reliable base for creating high-permeability manganese oxides used in high-frequency power electronics and signal inductors.
Specialty Foundry Requirements for Low Carbon Manganese Metal
Deploying certified Low Carbon Manganese Metal is a standard metallurgical tactic for protecting grain matrices from thermal and mechanical degradation:
- Preventing Intergranular Embrittlement: Utilizing low carbon electrolytic manganese allows operators to hit precise targets without risking carbon pickup, which protects stainless steel from intergranular corrosion.
- Austenite Optimization: Manganese expands and stabilizes the non-magnetic fcc austenite phase, acting as an efficient substitute for volatile nickel components in 200-series steel.
Structural Variations: Manganese Metal 99.7% vs Medium-Carbon Ferromanganese
| Property Matrix |
Manganese Metal 99.7% (EMM) |
Medium-Carbon Ferromanganese (MCFeMn) |
| Pure Mn Weight Fraction |
≥ 99.7% |
75.0% - 82.0% Typical |
| Carbon Impurity Level |
≤ 0.04% Max (Ultra-Low) |
1.0% - 2.0% (Carbon Risk) |
| Companion Iron Load |
Negligible (≤ 0.02%) |
Balances to 100% (High Fe Carryover) |
Melting Shop Comparisons
Understanding processing behavior variations across distinct metallurgical inputs protects ladle processing sequences from accidental out-of-spec events:
- Low Sulfur Electrolytic Manganese VS Silicomanganese (SiMn): EMM provides precise manganese alloying without introducing companion silicon atoms. Silicomanganese typically contains 15% to 20% silicon alongside its manganese content. This makes silicomanganese useful for basic carbon steels but problematic for specialized stainless grades that demand low silicon parameters.
- Low Phosphorus Manganese VS Crude Manganese Sinters: Refined EMM allows operators to hit precise targets without introducing phosphorus or sulfur compounds. Crude sinters carry elevated impurity concentrations that require extra refining time and increased slag manipulation costs.
Shipping and Quality Criteria for International Bulk Freight
Procuring raw materials through a high-volume global partner like ZhenAn requires structured trade and verification protocols:
- Rigorous Laboratory Certification: Verify that each batch is shipped alongside certified X-ray fluorescence (XRF) or ICP-OES analysis sheets confirming Low Phosphorus Manganese limits.

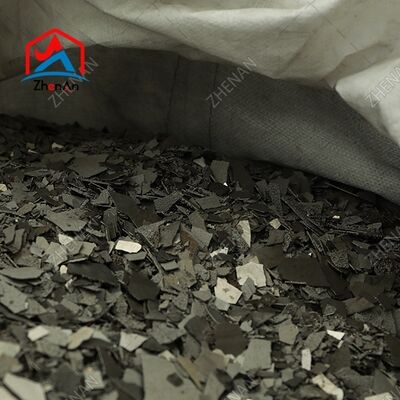

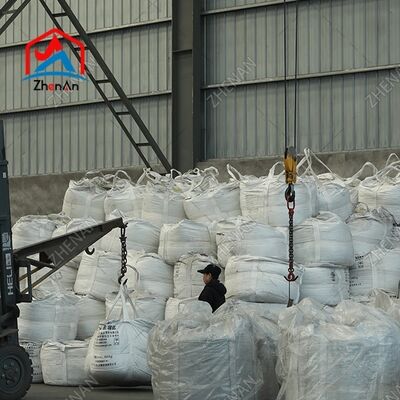

- Standard Packaging Configurations: Ensure shipments utilize verified standard packaging protocols, such as manganese flakes packed in drums/bags (typically 1000kg flexible bulk intermediate bags with thick internal plastic liners) to block ambient humidity.
- Direct Supply Coordination: Secure factory-direct pricing through the technical export division at ZhenAn.
Direct WhatsApp / WeChat Service line: +86 15518824805
Frequently Asked Questions
How to identify a reliable electrolytic manganese metal flakes supplier?
A reliable supplier should possess direct refining assets or verified long-term off-take agreements, coupled with transparent quality management protocols. Look for businesses backed by extensive trade track records, solid credit lines, and direct metallurgical customer support channels.
What certifications are required for electrolytic manganese metal flakes export?
Standard international distribution requires full ISO 9001 quality management certifications. Depending on target port jurisdictions, shipments must carry comprehensive Safety Data Sheets (SDS) matching REACH declarations, standard customs export permits, and certified origin documentation.
What quality documents should suppliers provide for EMM products?
Suppliers must provide an official Certificate of Analysis (COA) matching every unique batch number. This document must list precise values for elemental manganese concentration, along with maximum limits for trace carbon, sulfur, phosphorus, iron, and silicon.
How is the purity of electrolytic manganese flakes tested?
Elemental purity is verified using specialized analytical instruments. High-end verification employs Inductively Coupled Plasma Optical Emission Spectrometry (ICP-OES) or advanced X-Ray Fluorescence (XRF) to measure iron and silicon matrices.
What packaging methods are commonly used for electrolytic manganese metal flakes?
The standard packaging configuration uses 1-metric-ton or 1.25-metric-ton flexible intermediate bulk containers (FIBC jumbo bags) composed of heavy woven polymer materials with heavy internal polyethylene plastic liners.
What is the typical MOQ for electrolytic manganese metal flakes export orders?
The standard Minimum Order Quantity (MOQ) for global seafreight is 20 to 24 metric tons, which corresponds to a full 20-foot intermodal shipping container.
How do suppliers ensure consistent EMM quality between batches?
Consistency is maintained by strictly controlling parameters throughout the hydrometallurgical refining sequence, automating cell voltage controls, using high-purity buffer salts, and running continuous composition testing.
What factors affect electrolytic manganese metal flakes price?
Market pricing is driven by energy tariffs, raw manganese ore mining costs, global ocean freight rates, and supply-demand cycles across the stainless steel sector. Environmental policies can also affect production output.
